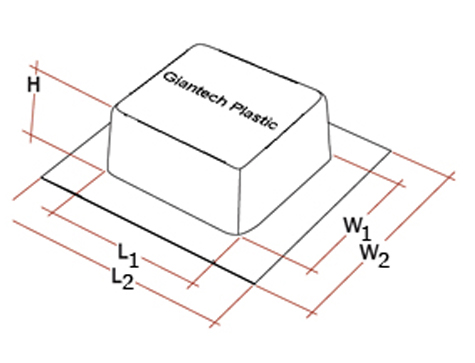

Vapour Barrier Dimensions



W1: Inside Width
W2: Outside Width
L1: Inside Length
L2: Outside Length
H: Height



    W1 W2 L1 L2 H
SS-1 Soft Single Gang 2.75 6 5.75 8 3 100 pcs.
SD-2 Soft Double Gang 4.5 7.5 4.5 7.5 2.75 100 pcs.
SO-O Soft Octagon 3.5 6 4 8 2.25 100 pcs.
ST-3 Soft Triple Gang 4.5 8 6.5 9 2.75 100 pcs.
SE-6 Soft R/Dryer ( 4 11 / 16 ) 5 7.5 5 7.5 3   50 pcs.
SF-4 Soft ( 4 ) four Gang 4.5 8 8 12 3   50 pcs.
HUB-1 Soft 1 gang (for Nutek/Hubbell) 2.75 6 5.5 9 2.5 100 pcs.
HUB-2 Soft 2 / Octagon (for Nutek/Hubbell) 4.5 8 4.5 9 2.5 100 pcs.
HS-1 Stiff Single Gang 2.75 5 5.75 7 3 100 pcs.
HD-2 Stiff Double Gang 4.5 7.5 4.5 7.5 2.75 100 pcs.
HED-2 Stiff Extended 2 Gang 5 7.5 5 7.5 3 100 pcs.
HO-O Stiff Octagon 3.5 6 4 8 2.5 100 pcs.
HT-3 Stiff Triple Gang 4.5 8 6.5 10 2.75 100 pcs.
SVB-18 Soft Recess/Pot Light, (7 7 / 8)" high  90° C  Code 12 20 18 25 7.75 100 pcs.
SVB-10 Soft Fan / Pot Light 12 20 18 25 7.75 100  pcs.
SVB-15 Soft Fan (fit BROAN QTXE series) 14 21 16 24 7.75 100  pcs.
SVB-20 Soft Recess/Pot Light    12 20 18 25 8.75 100  pcs.
SVB-22 Soft Recess Lighting 12 20 22.5 26 7 100 pcs.
CVB Corner edges Vapour Barriers 4 7.5 4 7.5 3.5 500 pcs.
SVB 12 Soft Recess/Pot Light (fits low LED 24” centre) 10 16 22.5 26 3.75 100 pcs.



Our product specifications data sheet is available to download.
